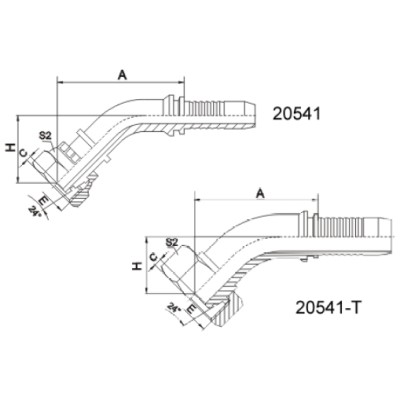

45° 公制内螺纹24° 锥带O形圈重系列
|
代号 |
螺纹 E |
软管 |
管子外径 |
O型圈 |
尺寸 |
||||
|
公称内径 |
标号 |
A |
C |
H |
S2 |
||||
|
20541-14-04 |
M14.X1.5 |
6 |
4 |
6 |
O04.5X1.5 |
50.1 |
1.1 |
28 |
19 |
|
20541-16-04 |
M16X1.5 |
6 |
4 |
8 |
O06.5X1.5 |
50.4 |
1.5 |
28.3 |
22 |
|
20541-16-05 |
M16X1.5 |
8 |
5 |
8 |
O06.5X1.5 |
52.2 |
1.5 |
28.9 |
22 |
|
20541-18-06 |
M18X1.5 |
10 |
6 |
10 |
O08.0X1.5 |
54.3 |
2 |
29.6 |
24 |
|
20541-20-08 |
M20X1.5 |
12 |
8 |
12 |
O10.0X1.5 |
67.8 |
2.5 |
32.8 |
27 |
|
20541-22-08 |
M22X1.5 |
12 |
8 |
14 |
O11.0X2.0 |
68.1 |
2.5 |
33.2 |
27 |
|
20541-24-10 |
M24X1.5 |
16 |
10 |
16 |
O13.0X2.0 |
80.7 |
2.5 |
35.9 |
30 |
|
20541-30-12 |
M30X2 |
20 |
12 |
20 |
O16.3X2.4 |
90.5 |
3 |
42.4 |
36 |
|
20541-18-04T |
M18X1.5 |
6 |
4 |
10 |
O08.0X1.5 |
43.4 |
2 |
21.3 |
22 |
|
20541-20-06T |
M20X1.5 |
10 |
6 |
12 |
O10.0X1.5 |
49.7 |
2.5 |
25 |
24 |
|
20541-22-06T |
M22X1.5 |
10 |
6 |
14 |
O11.0X2.0 |
49.6 |
2.5 |
25.3 |
27 |
|
20541-24-08T |
M24X1.5 |
12 |
8 |
16 |
O13.0X2.0 |
62.5 |
3 |
27.5 |
30 |
|
20541-30-10T |
M30X2 |
16 |
10 |
20 |
O16.3X2.4 |
75.8 |
3 |
31 |
36 |
|
20541-36-12T |
M36X2 |
20 |
12 |
25 |
O20.3X2.4 |
82.7 |
3 |
34.6 |
41 |
|
20541-36-14T |
M36X2 |
22 |
14 |
25 |
O20.3X2.4 |
84.4 |
3 |
34 |
41 |
|
20541-42-16T |
M42X2 |
25 |
16 |
30 |
O25.3X2.4 |
92.3 |
5 |
36.8 |
50 |
|
20541-52-20T |
M52X2 |
32 |
20 |
38 |
O33.3X2.4 |
103.4 |
6.5 |
41.2 |
60 |
|
20541-52-24T |
M52X2 |
40 |
24 |
38 |
O33.3X2.4 |
115.9 |
6.5 |
45.1 |
60 |
|
注：1.表中代号用于编织软管。 2.如需用于缠绕软管代号改为 20542-XX-XX |
|||||||||
