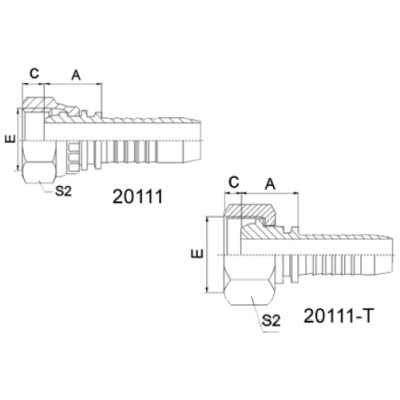

公制内螺纹球面
|
代号 |
螺纹 E |
软管 |
尽寸 |
|||
|
公称内径 |
标号 |
A |
C |
S2 |
||
|
20211-10-03 |
M10X1 |
5 |
3 |
18 |
2.5 |
14 |
|
20111-10-04 |
M10X1 |
6 |
4 |
18 |
2.5 |
14 |
|
20111-12-04 |
M12X1.5 |
6 |
4 |
18.5 |
4 |
17 |
|
20111-12-05 |
M12X1.5 |
8 |
5 |
18.5 |
4 |
17 |
|
20111-14-04 |
M14X1.5 |
6 |
4 |
19.5 |
4.5 |
19 |
|
20111-14-05 |
M14X1.5 |
8 |
5 |
19.5 |
4.5 |
19 |
|
20111-16-04 |
M16X1.5 |
6 |
4 |
19.5 |
4.5 |
22 |
|
20111-16-05 |
M16X1.5 |
8 |
5 |
20 |
4.5 |
22 |
|
20111-16-06 |
M16X1.5 |
10 |
6 |
20 |
4.5 |
22 |
|
20111-18-06 |
M18X1.5 |
10 |
6 |
21.5 |
4 |
24 |
|
20111-18-08 |
M18X1.5 |
12 |
8 |
22 |
4 |
24 |
|
20111-20-08 |
M20X1.5 |
12 |
8 |
23 |
5.5 |
27 |
|
20111-22-08 |
M22X1.5 |
12 |
8 |
23.5 |
5 |
27 |
|
20111-22-10 |
M22X1.5 |
16 |
10 |
24.5 |
5 |
27 |
|
20111-24-10 |
M24X1.5 |
16 |
10 |
26 |
5 |
30 |
|
20111-27-12D |
M27X1.5 |
20 |
12 |
26 |
5.5 |
32 |
|
20111-30-12D |
M30X1.5 |
20 |
12 |
26.5 |
6 |
36 |
|
20111-30-12 |
M30X2 |
20 |
12 |
26.5 |
7 |
36 |
|
20211-18-05T |
M18X1.5 |
8 |
5 |
21.5 |
4 |
24 |
|
20211-20-06T |
M20X1.5 |
10 |
6 |
20.5 |
5.5 |
24 |
|
20211-22-06T |
M22X1.5 |
10 |
6 |
23 |
5 |
27 |
|
20211-24-08T |
M24X1.5 |
12 |
8 |
22 |
5.5 |
30 |
|
20211-27-08DT |
M27X1.5 |
12 |
8 |
23 |
5.5 |
32 |
|
20211-27-10DT |
M27X1.5 |
16 |
10 |
23.5 |
5.5 |
32 |
|
20211-27-10T |
M27X2 |
16 |
10 |
23.5 |
7 |
32 |
|
20211-36-12T |
M36X2 |
20 |
12 |
26 |
7 |
41 |
|
20211-36-14T |
M36X2 |
22 |
14 |
26 |
7 |
41 |
|
20211-39-14T |
M39X2 |
22 |
14 |
28.5 |
7 |
46 |
|
20211-39-16T |
M39X2 |
25 |
16 |
29.5 |
7 |
46 |
|
20211-42-16T |
M42X2 |
25 |
16 |
30 |
8.5 |
50 |
|
20211-45-20T |
M45X2 |
32 |
20 |
31.5 |
8.5 |
55 |
|
20211-52-20T |
M52X2 |
32 |
20 |
33 |
9 |
60 |
|
20211-52-24T |
M52X2 |
40 |
24 |
33 |
9 |
60 |
|
20211-64-32T |
M64X2 |
50 |
32 |
35 |
14 |
75 |
|
注：1.表中代号用于编织软管。 2.如需用于缠绕软管代号改为 20112-XX-XX |
||||||
