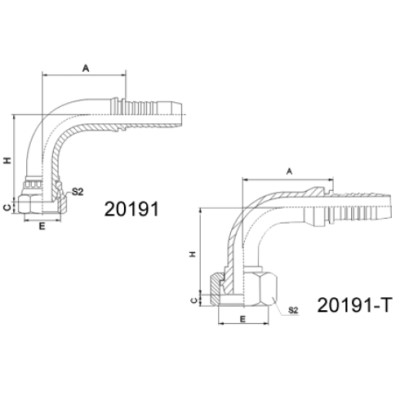

90°公制内螺纹球面
|
代号 |
螺纹 E |
软管 |
尺寸 |
||||
|
公称内径 |
标号 |
A |
C |
H |
S2 |
||
|
20191-10-03 |
M10X1 |
5 |
3 |
27 |
2.5 |
35.5 |
14 |
|
20191-12-04 |
M12X1.5 |
6 |
4 |
30 |
4 |
37.5 |
17 |
|
20191-14-04 |
M14X1.5 |
6 |
4 |
30 |
4.5 |
38 |
19 |
|
20191-14-05 |
M14X1.5 |
8 |
5 |
33 |
4.5 |
41 |
19 |
|
20191-16-04 |
M16X1.5 |
6 |
4 |
30 |
4.5 |
38.5 |
19 |
|
20191-16-05 |
M16X1.5 |
8 |
5 |
33 |
4.5 |
41.5 |
22 |
|
20191-16-06 |
M16X1.5 |
10 |
6 |
35.3 |
4.5 |
43.8 |
22 |
|
20191-18-06 |
M18X1.5 |
10 |
6 |
35.3 |
4 |
45.3 |
24 |
|
20191-18-08 |
M18X1.5 |
12 |
8 |
40.5 |
4 |
50.5 |
24 |
|
20191-20-08 |
M20X1.5 |
12 |
8 |
41 |
5.5 |
52 |
27 |
|
20191-22-08 |
M22X1.5 |
12 |
8 |
41 |
5 |
52.5 |
27 |
|
20191-24-10 |
M24X1.5 |
16 |
10 |
58 |
5 |
58.5 |
30 |
|
20191-30-12D |
M30X1.5 |
20 |
12 |
67.5 |
6 |
68.5 |
36 |
|
20191-30-12 |
M30X2 |
20 |
12 |
67.5 |
6 |
68.5 |
36 |
|
20191-18-05T |
M18X1.5 |
8 |
5 |
33 |
4 |
43 |
24 |
|
20191-20-06T |
M20X1.5 |
10 |
6 |
35.3 |
5.5 |
44.8 |
24 |
|
20191-22-06T |
M22X1.5 |
10 |
6 |
35.8 |
5 |
76.8 |
27 |
|
20191-24-08T |
M24X1.5 |
12 |
8 |
41 |
5.5 |
51 |
30 |
|
20191-27-10DT |
M27X1.5 |
16 |
10 |
56 |
5.5 |
55.5 |
32 |
|
20191-27-10T |
M27X2 |
16 |
10 |
56 |
5.5 |
55.5 |
32 |
|
20191-36-12T |
M36X2 |
20 |
12 |
65.5 |
7 |
68 |
41 |
|
20191-36-14T |
M36X2 |
22 |
14 |
71.2 |
7 |
69 |
41 |
|
20191-39-16T |
M39X2 |
25 |
16 |
76.7 |
7 |
73.5 |
46 |
|
20191-45-20T |
M45X2 |
32 |
20 |
91.5 |
8.5 |
85 |
55 |
|
20191-52-24T |
M52X2 |
40 |
24 |
109.4 |
9 |
100 |
60 |
|
20191-64-32T |
M64X2 |
50 |
32 |
131.75 |
14 |
122.3 |
75 |
|
注：1.表中代号用于编织软管。 2.如需用于缠绕软管代号改为 20192-XX-XX |
|||||||
