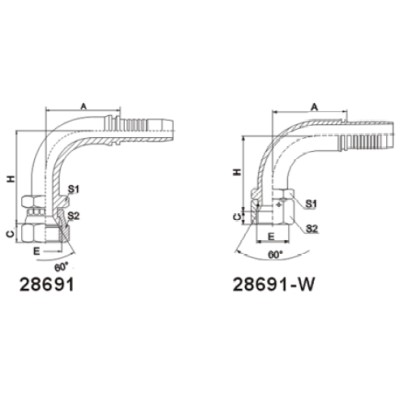

90° 日本公制内螺纹60° 内锥面
|
代号 |
螺纹 E |
软管 |
尺寸 |
|||||
|
公称内径 |
标号 |
A |
C |
H |
S1 |
S2 |
||
|
28691-14-04 |
M14X1.5 |
6 |
4 |
30 |
10.5 |
38 |
19 |
19 |
|
28691-14-06 |
M14X1.5 |
10 |
6 |
35.5 |
10.5 |
43.3 |
19 |
19 |
|
28691-16-05 |
M16X1.5 |
8 |
5 |
33 |
10 |
44 |
22 |
22 |
|
28691-18-06 |
M18X1.5 |
10 |
6 |
35.3 |
11.5 |
46.3 |
24 |
24 |
|
28691-22-08 |
M22X1.5 |
12 |
8 |
41 |
14 |
52.5 |
27 |
27 |
|
28691-24-10 |
M24X1.5 |
16 |
10 |
56.5 |
15 |
59 |
32 |
32 |
|
28691-30-2 |
M30X1.5 |
20 |
12 |
65.5 |
18.3 |
68.5 |
36 |
36 |
|
28691-33-16 |
M33X1.5 |
25 |
16 |
76.7 |
21.3 |
76 |
41 |
41 |
|
28691-36-20 |
M36X1.5 |
32 |
20 |
93 |
20 |
90 |
46 |
46 |
|
28691-42-24W |
M42X1.5 |
40 |
24 |
109.4 |
18.8 |
103 |
55 |
55 |
|
注：1.表中代号用于编织软管。 2.如需用于缠绕软管代号改为 28692-XX-XX. |
||||||||
