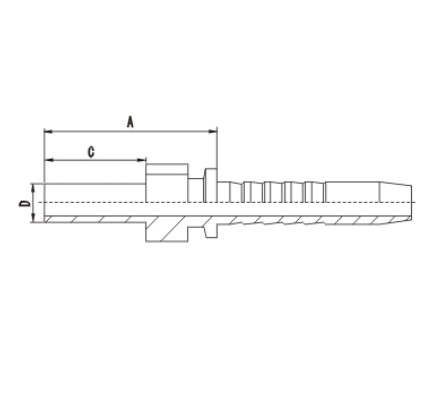

卡套式直管
|
代号 |
管子外径D |
软管 |
尺寸 |
备注 |
||
|
公称内径 |
标号 |
A |
C |
|||
|
50011-06-03 |
6 |
5 |
3 |
28.5 |
22 |
轻系列 |
|
50011-06-04 |
6 |
6 |
4 |
29 |
22 |
|
|
50011-10-05 |
10 |
8 |
5 |
31 |
23 |
|
|
50011-10-06 |
10 |
10 |
6 |
32 |
23 |
|
|
50011-12-06 |
12 |
10 |
6 |
33.5 |
23 |
|
|
50011-12-08 |
12 |
12 |
8 |
33 |
23 |
|
|
50011-15-06 |
15 |
10 |
6 |
35.5 |
25 |
|
|
50011-15-08 |
15 |
12 |
8 |
35.5 |
25 |
|
|
50011-18-08 |
18 |
12 |
8 |
36.5 |
26 |
|
|
50011-18-10 |
18 |
16 |
10 |
41 |
26 |
|
|
50011-22-10 |
22 |
16 |
10 |
44 |
28 |
|
|
50011-22-16 |
22 |
25 |
16 |
46 |
28 |
|
|
50011-28-06 |
28 |
25 |
16 |
47 |
30 |
|
|
50011-35-20 |
35 |
32 |
20 |
56 |
36 |
|
|
50011-42-24 |
42 |
40 |
24 |
62 |
40 |
|
|
50011-08-04 |
8 |
6 |
4 |
31 |
24 |
重系列 |
|
50011-08-05 |
8 |
8 |
5 |
33 |
24 |
|
|
50011-08-06 |
8 |
10 |
6 |
33 |
24 |
|
|
50011-10-04 |
10 |
6 |
4 |
35 |
26 |
|
|
50011-12-04 |
12 |
6 |
4 |
34.5 |
26 |
|
|
50011-12-05 |
12 |
8 |
5 |
35.5 |
26 |
|
|
50011-14-06 |
14 |
10 |
6 |
39.5 |
29 |
|
|
50011-14-08 |
14 |
12 |
8 |
40 |
29 |
|
|
50011-14-12 |
14 |
20 |
12 |
45.5 |
29 |
|
|
50011-16-08 |
16 |
12 |
8 |
41 |
30 |
|
|
50011-16-10 |
16 |
16 |
10 |
45.5 |
30 |
|
|
50011-20-10 |
20 |
16 |
10 |
52.5 |
36 |
|
|
50011-20-12 |
20 |
20 |
12 |
52.5 |
36 |
|
|
50011-25-12 |
25 |
20 |
12 |
56 |
40 |
|
|
50011-25-16 |
25 |
25 |
16 |
57 |
40 |
|
|
50011-30-10 |
30 |
25 |
16 |
63 |
44 |
|
|
50011-30-20 |
30 |
32 |
20 |
64 |
44 |
|
|
50011-38-16 |
38 |
25 |
16 |
69 |
50 |
|
|
50011-38-20 |
38 |
32 |
20 |
70 |
50 |
|
|
注：1.表中代号用于编织软管。 2.如需用于缠绕软管代号改为 50012-XX-XX. |
||||||
