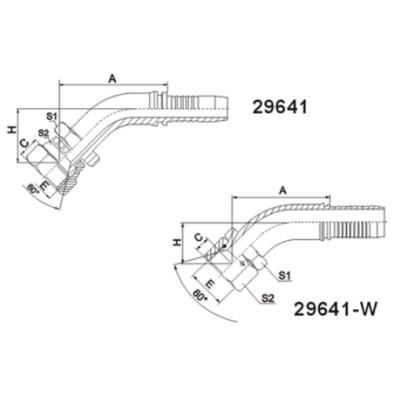

45° 日本英管内螺纹60° 内锥面
|
代号 |
螺纹 E |
软管 |
尺寸 |
|||||
|
公称内径 |
标号 |
A |
C |
H |
S1 |
S2 |
||
|
29641-04-04 |
G1/4"X19 |
6 |
4 |
43.4 |
8 |
21.3 |
19 |
19 |
|
29641-06-06 |
G3/8"X19 |
10 |
6 |
48.9 |
9 |
24.6 |
22 |
22 |
|
29641-08-08 |
G1/2"X14 |
12 |
8 |
62.5 |
12 |
27.5 |
27 |
27 |
|
29641-12-12 |
G3/4’X14 |
20 |
12 |
81.3 |
13.5 |
33.9 |
32 |
32 |
|
29641-16-16 |
G1"X11 |
25 |
16 |
87.3 |
16 |
36 |
41 |
41 |
|
29641-20-20W |
G1.1/4"X11 |
32 |
20 |
107.3 |
18.5 |
46.5 |
50 |
50 |
|
29641-24-24W |
G1.1/2"X11 |
40 |
24 |
122.8 |
19 |
50.8 |
55 |
55 |
|
29641-32-32W |
G2"X11 |
50 |
32 |
143 |
23 |
60 |
70 |
70 |
|
注：1.表中代号用于编织软管。 2.如需用于缠绕软管代号改为 29642-XX-XX. |
||||||||
