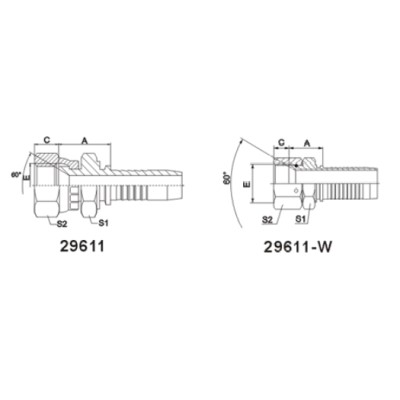

日本英制内螺纹60° 内锥面
|
代号 |
螺纹 E |
软管 |
尺寸 |
||||
|
公称内径 |
标号 |
A |
C |
S1 |
S2 |
||
|
29611-02-03 |
G1/8"X28 |
5 |
3 |
20 |
7 |
14 |
14 |
|
29611-04-04 |
G1/4"X19 |
6 |
4 |
21 |
8 |
19 |
19 |
|
29611-04-05 |
G1/4"X19 |
8 |
5 |
21 |
8 |
19 |
19 |
|
29611-06-04 |
G3/8"X19 |
6 |
4 |
24 |
9 |
22 |
22 |
|
29611-06-06 |
G3/8"X19 |
10 |
6 |
23 |
9 |
22 |
22 |
|
29611-08-06 |
G1/2"X14 |
10 |
6 |
28 |
12 |
27 |
27 |
|
29611-08-08 |
G1/2"X14 |
12 |
8 |
26.5 |
12 |
27 |
27 |
|
29611-10-10 |
G5/8’X14 |
16 |
10 |
31 |
11.5 |
30 |
30 |
|
29611-12-10 |
G3/4"X14 |
16 |
10 |
28.5 |
13.5 |
32 |
32 |
|
29611-12-12 |
G3/4"X14 |
20 |
12 |
28.5 |
13.5 |
32 |
32 |
|
29611-16-16 |
G1"X11 |
25 |
16 |
32 |
16 |
41 |
41 |
|
29611-20-20W |
G1.1/4"X11 |
32 |
20 |
43 |
18.5 |
50 |
50 |
|
29611-24-24W |
G1.1/2"X11 |
40 |
24 |
43.5 |
19 |
55 |
55 |
|
29611-32-32W |
G2"X11 |
50 |
32 |
46.5 |
23 |
70 |
70 |
|
注：1.表中代号用于编织软管。 2.如需用于缠绕软管代号改为 29612-XX-XX. |
|||||||
