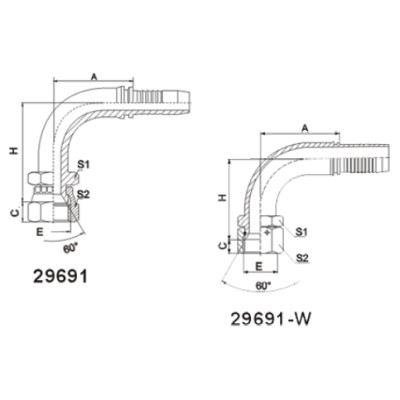

90° 日本英制内螺纹60° 内锥面
|
代号 |
螺纹 E |
软管 |
尺寸 |
|||||
|
公称内径 |
标号 |
A |
C |
H |
S1 |
S2 |
||
|
29691-04-04 |
G1/4"X19 |
6 |
4 |
30 |
8 |
38 |
19 |
19 |
|
29691-04-05 |
G1/4"X19 |
8 |
5 |
33 |
8 |
41 |
19 |
19 |
|
29691-06-06 |
G3/8"X19 |
10 |
6 |
35.3 |
9 |
45.8 |
22 |
22 |
|
29691-08-08 |
G1/2"X14 |
12 |
8 |
41 |
12 |
53 |
27 |
27 |
|
29691-10-10 |
G5/8"X14 |
16 |
10 |
56.5 |
11.5 |
61 |
30 |
30 |
|
29691-12-12 |
G3/4’X14 |
20 |
12 |
65.5 |
13.5 |
69 |
32 |
32 |
|
29691-16-16 |
G1"X11 |
25 |
16 |
76.7 |
16 |
76.5 |
41 |
41 |
|
29691-20-20W |
G1.1/4"X11 |
32 |
20 |
91.5 |
18.5 |
92.5 |
50 |
50 |
|
29691-24-24W |
G1.1/2"X11 |
40 |
24 |
109.4 |
19 |
110.5 |
55 |
55 |
|
29691-32-32W |
G2"X11 |
50 |
32 |
131.8 |
23 |
133.8 |
70 |
70 |
|
注：1.表中代号用于编织软管。 2.如需用于缠绕软管代号改为 29692-XX-XX. |
||||||||
