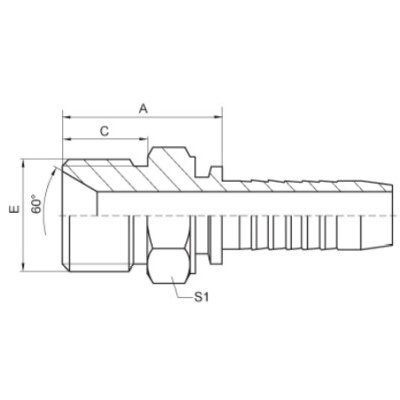

英管外螺纹60° 内锥面
|
代号 |
螺纹 E |
软管 |
尺寸 |
|||
|
公称内径 |
标号 |
A |
C |
S1 |
||
|
12611-02-03 |
G1/8"X28 |
5 |
3 |
22 |
10 |
12 |
|
12611-04-04 |
G1/4"X19 |
6 |
4 |
24.5 |
12 |
14 |
|
12611-06-05 |
G3/8"X19 |
8 |
5 |
26 |
13.5 |
17 |
|
12611-06-06 |
G3/8"X19 |
10 |
6 |
27.5 |
13.5 |
17 |
|
12611-06-08 |
G3/8"X19 |
12 |
8 |
26.5 |
13.5 |
19 |
|
12611-08-06 |
G1/2"X14 |
10 |
6 |
30.5 |
16 |
22 |
|
12611-08-08 |
G1/2"X14 |
12 |
8 |
31 |
16 |
22 |
|
12611-10-08 |
G5/8"X14 |
12 |
8 |
32.5 |
17.5 |
24 |
|
12611-10-10 |
G5/8"X14 |
16 |
10 |
33.5 |
17.5 |
24 |
|
12611-12-08 |
G3/4"X14 |
12 |
8 |
35.5 |
18.5 |
27 |
|
12611-12-10 |
G3/4"X14 |
16 |
10 |
37 |
18.5 |
27 |
|
12611-12-12 |
G3/4"X14 |
20 |
12 |
36.5 |
18.5 |
27 |
|
12611-16-12 |
G1"X11 |
20 |
12 |
40.5 |
20.5 |
36 |
|
12611-16-16 |
G1"X11 |
25 |
16 |
41.5 |
20.5 |
36 |
|
12611-20-16 |
G1.1/4"X11 |
25 |
16 |
43.5 |
20.5 |
46 |
|
12611-20-20 |
G1.1/4"X11 |
32 |
20 |
44.5 |
20.5 |
46 |
|
12611-24-20 |
G1.1/2"X11 |
32 |
20 |
49 |
23 |
50 |
|
12611-24-24 |
G1.1/2"X11 |
40 |
24 |
46 |
23 |
50 |
|
12611-32-32 |
G2"X11 |
50 |
32 |
53.5 |
25.5 |
65 |
|
注：1.表中代号用于编织软管。 2.如需用于缠绕软管代号改为 12612-XX-XX. |
||||||
