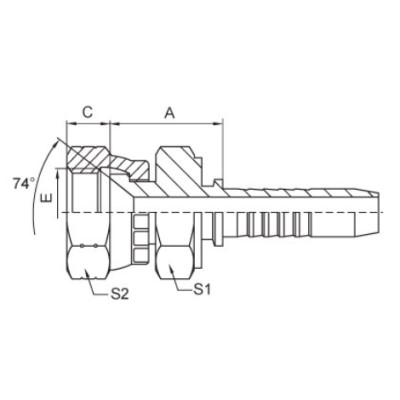

美制JIC内螺纹74° 内锥面双六角
|
代号 |
螺纹 E |
软管 |
尺寸 |
||||
|
公称内径 |
标号 |
A |
C |
S1 |
S2 |
||
|
26711D-04-04 |
7/16"X20 |
6 |
4 |
20 |
9 |
15 |
15 |
|
26711D-05-04 |
1/2"X20 |
6 |
4 |
20.5 |
9.5 |
17 |
17 |
|
26711D-06-04 |
9/16"X18 |
6 |
4 |
21 |
10.5 |
19 |
19 |
|
26711D-06-06 |
9/16"X18 |
10 |
6 |
21 |
10.5 |
19 |
19 |
|
26711D-08-06 |
3/4"X16 |
10 |
6 |
25 |
11 |
24 |
24 |
|
26711D-08-08 |
3/4"X16 |
12 |
8 |
24.5 |
11 |
24 |
24 |
|
26711D-08-10 |
3/4"X16 |
16 |
10 |
25.5 |
11 |
24 |
24 |
|
26711D-10-08 |
7/8"X14 |
12 |
8 |
28 |
13 |
27 |
27 |
|
26711D-10-10 |
7/8"X14 |
16 |
10 |
29 |
13 |
27 |
27 |
|
26711D-12-12 |
1.1/16"X12 |
20 |
12 |
31.5 |
15 |
32 |
32 |
|
26711D-16-12 |
1.5/16"X12 |
20 |
12 |
33.5 |
16 |
41 |
41 |
|
26711D-16-16 |
1.5/16"X12 |
25 |
16 |
34.5 |
16 |
41 |
41 |
|
26711D-16-20 |
1.5/16"X12 |
32 |
20 |
36.5 |
16 |
41 |
41 |
|
26711D-20-20 |
1.7/16"X12 |
32 |
20 |
39 |
17 |
50 |
50 |
|
注：1.表中代号用于编织软管。 2.如需用于缠绕软管代号改为 26712D-XX-XX. |
|||||||
