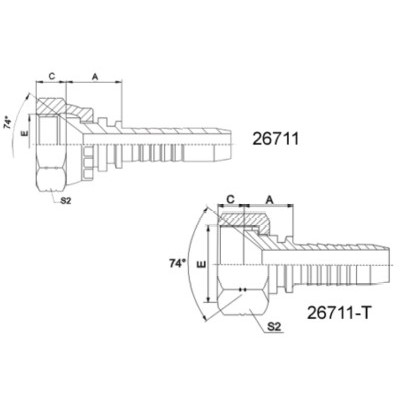

美制JIC内螺纹74° 内锥面
|
代号 |
螺纹 E |
软管 |
尺寸 |
|||
|
公称内径 |
标号 |
A |
C |
S2 |
||
|
26711-04-03 |
7/16"X20 |
5 |
3 |
14.5 |
9 |
15 |
|
26711-04-04 |
7/16"X20 |
6 |
4 |
15 |
9 |
15 |
|
26711-05-04 |
1/2"X20 |
6 |
4 |
15.5 |
9.5 |
17 |
|
26711-05-05 |
1/2"X20 |
8 |
5 |
15.5 |
9.5 |
17 |
|
26711-05-06 |
1/2"X20 |
10 |
6 |
15.5 |
9.5 |
17 |
|
26711-06-04 |
9/16"X18 |
6 |
4 |
15.5 |
10.5 |
19 |
|
26711-06-05 |
9/16"X18 |
8 |
5 |
15.5 |
10.5 |
19 |
|
26711-06-06 |
9/16"X18 |
10 |
6 |
15.5 |
10.5 |
19 |
|
26711-06-08 |
9/16"X18 |
12 |
8 |
16 |
10.5 |
19 |
|
26711-08-06 |
3/4"X16 |
10 |
6 |
17.5 |
11 |
24 |
|
26711-08-08 |
3/4"X16 |
12 |
8 |
18 |
11 |
24 |
|
26711-08-10 |
3/4"X16 |
16 |
10 |
19.5 |
11 |
24 |
|
26711-10-08 |
7/8"X14 |
12 |
8 |
18.5 |
13 |
27 |
|
26711-10-10 |
7/8"X14 |
16 |
10 |
20 |
13 |
27 |
|
26711-10-12 |
7/8"X14 |
20 |
12 |
20 |
13 |
27 |
|
26711-12-10 |
1.1/16"X12 |
16 |
10 |
21.5 |
15 |
32 |
|
26711-12-12 |
1.1/16"X12 |
20 |
12 |
21.5 |
15 |
32 |
|
26711-12-16 |
1.1/16"X12 |
25 |
16 |
23 |
15 |
32 |
|
26711-14-12 |
1.1/16"X12 |
20 |
12 |
21.5 |
15 |
36 |
|
26711-16-16 |
1.5/16"X12 |
25 |
16 |
23 |
16 |
41 |
|
26711-16-20 |
1.5/16"X12 |
32 |
20 |
24 |
16 |
41 |
|
26711-12-08T |
1.1/16"X12 |
12 |
8 |
19 |
15 |
32 |
|
26711-16-12T |
1.5/16"X12 |
20 |
12 |
18.5 |
16 |
41 |
|
26711-20-16T |
1.5/8"X12 |
25 |
16 |
23 |
17 |
50 |
|
26711-20-20W |
1.5/8"X12 |
32 |
20 |
26 |
17 |
50 |
|
26711-24-20W |
1.7/8"X12 |
32 |
20 |
26.5 |
20 |
55 |
|
26711-24-24W |
1.7/8"X12 |
40 |
24 |
26.5 |
20 |
55 |
|
26711-32-24T |
2.1/2"X12 |
40 |
24 |
27 |
23.5 |
75 |
|
26711-32-32T |
2.1/2"X12 |
50 |
32 |
27 |
23.5 |
75 |
|
注：1.表中代号用于编织软管。 2.如需用于缠绕软管代号改为 26712-XX-XX. |
||||||
