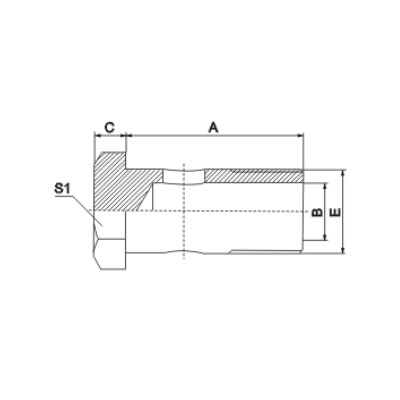

公制铰接螺栓
|
代号 |
螺纹 E |
尺寸 |
|||
|
A |
B |
C |
S1 |
||
|
700M-10 |
M10X1 |
19 |
5.5 |
6 |
14 |
|
700M-12 |
M12X1.5 |
24 |
7 |
6 |
17 |
|
700M-14 |
M14X1.5 |
26 |
9 |
6 |
19 |
|
700M-16 |
M16X1.5 |
28 |
11 |
6 |
22 |
|
700M-18 |
M18X1.5 |
32 |
13 |
6 |
24 |
|
700M-22 |
M22X1.5 |
39 |
16 |
7 |
27 |
|
700M-26 |
M26X1.5 |
45 |
20 |
7 |
32 |
|
700M-30 |
M30X1.5 |
51 |
24 |
7 |
36 |
